Italian made Siet transformers are the most popular neon transformers used in Australia today. Neolite are able to supply a full range of 30 and 60mA models.

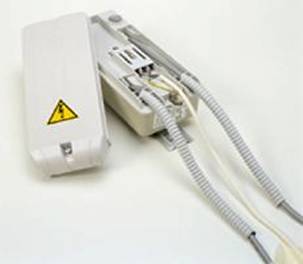

Conventional Siet transformers or “Metalbox” type are certified by ENEC, and are built in an electro-galvanised metal case, patented for outdoor use (IP 44). The advanced technology used for the electronically controlled impregnation under high vacuum, using a special epoxy resin with filling compounds, assures an excellent thermal conductivity and excellent dielectric characteristics.


The metal case functions to contain the dilatations due to heating of the transformer during operation and protects it against atmospheric agents avoiding any possibility of cracks along the body. Hence they are superior to some competitors that offer only a resin block type construction.


Metalbox transformers are built in a mould and are not welded box in order to avoid any rust.  A bipolar knife switch is built into the lid to interrupt power supply once the lid is open. Technical Information is shown below.



Australian Certificate of Suitability Number:  CS6480N

Made In Italy

Metal Case

Enclosed Type: Rated IP44. Suitable for Exterior & Interior Use



Code

Secondary Voltage (KV)

Secondary

Current

(mA)

Dimensions

( L x W x H mm)

Weight

(Kg)

T0225 SI

2

25

255 x 84 x 81

3.4

T0325 SI

3

25

255 x 84 x 81

3.4

T0425 SI

4

25

255 x 84 x 81

3.4

T0525 SI

5

25

255 x 84 x 89

4.2

T0625 SI

6

25

255 x 84 x 89

4.2

T7.525 SI

7.5

25

255 x 84 x 102

5.2

T0925 SI

9

25

255 x 84 x 102

5.2

T1025 SI

10

25

295 x 113 x 102

7.5

T1225 SI

12

25

295 x 113 x 102

7.5

T1525 SI

15

25

295 x 113 x 113

9.4



Code

Secondary Voltage (KV)

Secondary

Current (mA)

Dimensions

( L x W x H mm)

Weight

(Kg)

T0650 SI

6

50

295 x 113 x 100

7.5

T1050 SI

10

50

295 x 113 x 100

9.4

T1250 SI

12

50

310 x 125 x 140

9.4

T1550 SI

15

50

310 x 125 x 140

12.9
